Mermaid Converter

Author: hjlarry
Version: 0.0.1
Type: tool
Repo: https://github.com/hjlarry/dify-plugin-mermaid

Description

A Dify plugin that converts Mermaid diagram code to images in multiple formats (PNG, JPG, PDF, SVG) using the mermaid.ink API service. This plugin enables users to generate visual diagrams programmatically within Dify workflows and agent interactions.

Features

Multiple Output Formats: Supports PNG, JPG, SVG, and PDF formats
Theme Support: Choose from default, dark, neutral, or forest themes
Customization Options: Configure background colors, image dimensions
Error Handling: Graceful handling of invalid syntax and API failures
No API Key Required: Uses the free mermaid.ink public service

Supported Parameters

Type	Required	Default	Description
string	Yes	-	The Mermaid diagram syntax code
select	No	png	Output format: png, jpg, svg, pdf
select	No	default	Visual theme: default, dark, neutral, forest
string	No	transparent	Background color (hex code or named color)
number	No	-	Image width in pixels
number	No	-	Image height in pixels

Usage Examples

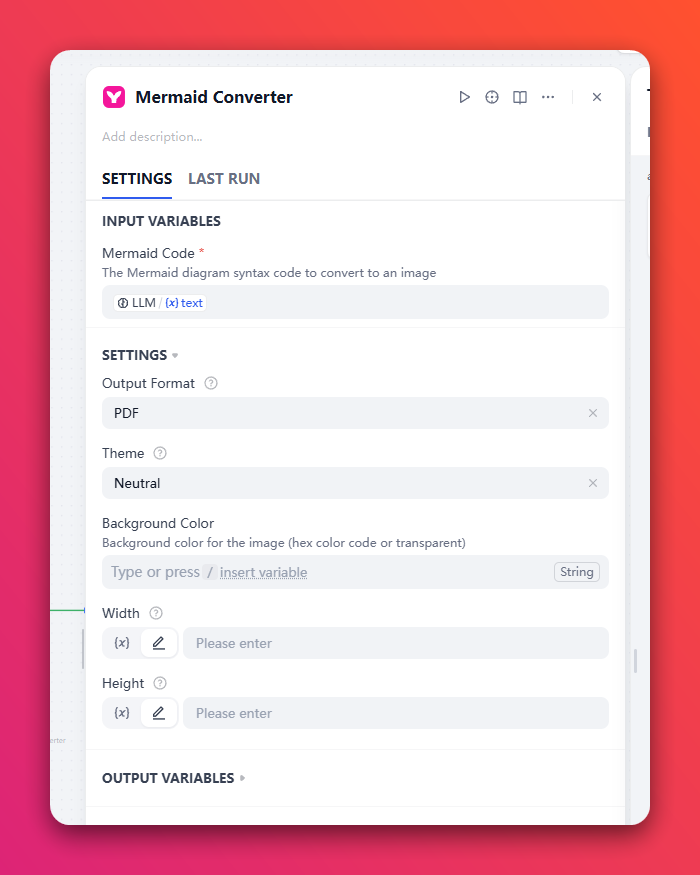

The converter config:

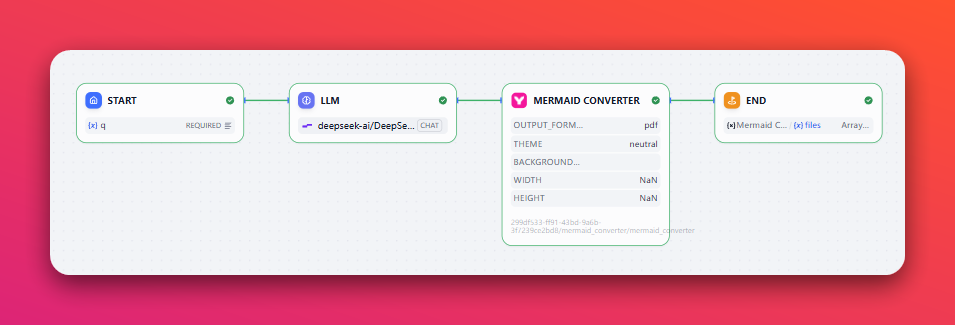

Here I create a workflow and ask the LLM to generate a git common operation mindmap by mermaid code:

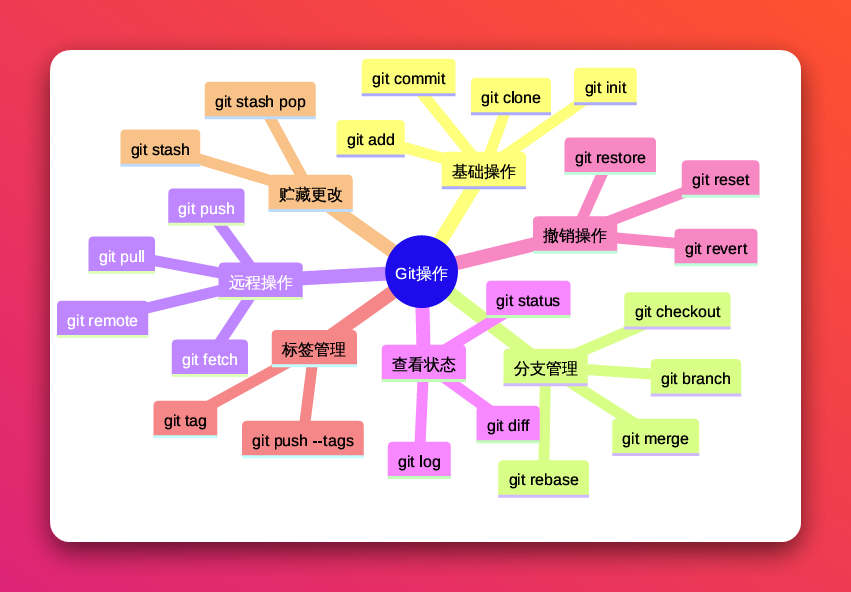

The final result:

Troubleshooting

Common Issues

"Invalid Mermaid syntax"
- Check your Mermaid code syntax using Mermaid Live Editor
- Ensure proper line breaks and spacing in diagram code
"Conversion timeout"
- Simplify complex diagrams
- Check network connectivity
- Try again as the service may be temporarily slow
"Diagram too large"
- Reduce the complexity of your diagram
- Split large diagrams into smaller components
Empty or corrupted output
- Verify Mermaid syntax is correct
- Check if all required parameters are provided
- Try with a simpler diagram first

Limitations

Maximum diagram size limited by mermaid.ink API
Dependent on external service availability
Some advanced Mermaid features may not be supported
Internet connectivity required
